Αρχική Σελίδα /Προϊόντα/Υλικός μεταφορέας κυλίνδρων/Heat Resistant Flex Expendable Galvanized Powder Coated Carbon Steel Roller Conveyor System

Heat Resistant Flex Expendable Galvanized Powder Coated Carbon Steel Roller Conveyor System

10 Meters
MOQ
$500.00(10 - 49 Meters) $450.00(50 - 99 Meters) $400.00(>=100 Meters)
τιμή
Heat Resistant Flex Expendable Galvanized Powder Coated Carbon Steel Roller Conveyor System
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Express
Showroom Location: None
Condition: New
Material: Stainless Steel
Material Feature: Heat Resistant
Structure: Conveyor System
Place of Origin: Shanghai, China
Μάρκα: Wangman
Voltage: 220V/380V/440V
Power: 1.5 KW
Dimension(L*W*H): Customized
Warranty: 1 Year
Width or Diameter: 800mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Motor, Bearing, Gear, PLC, Servo Motor
Application: Conveying
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Online support
Πιστοποίηση: CE
Βασικές πληροφορίες
Place of Origin: Shanghai, China
Μάρκα: Wangman
Πιστοποίηση: CE
Πληρωμής & Αποστολής Όροι
Packaging Details: Wooden Boxes
Supply Ability: 200 Unit/Units per Month
Περιγραφή προϊόντων
Product Description

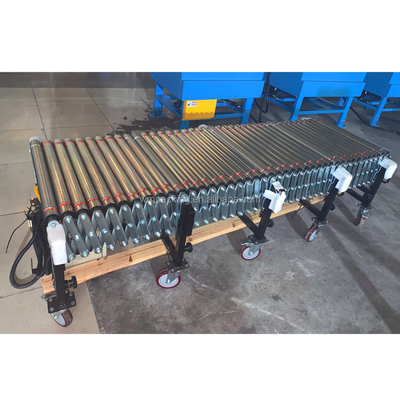

Having extendable, flexible frames, these belt-drive powered roller conveyors are commonly used for loading and unloading trailers, creating temporary extra assembly lines. The accordion-style frames can stretch, curve, and contract to change the length or shape of the conveyors, and the conveyors collapse for compact storage. Self-tracking Rollers are driven by motorized belts, which ensures conveyed items following the conveying curves. Adjustable legs on both sides provide support. The legs have swivel casters that allow the conveyors to be rolled into the right position. Powered roller conveyors minimize the effort it takes to move loads with rimmed or uneven bottoms from one place to another. The conveyor's roller spacing density affects the size of the items that can be conveyed on it. The smallest item on the conveyor should be supported by at least three rollers at all times.
Specification:
Roller Driven Main Power:
Famous Brand Gear Reducer(220V/1PH/90W)
O-Belt:
Wangman Unique designed, TPU Material, OD 6mm
Frequency Converter:
Delta from Taiwan of China
Open Length:
5m, 6m, 7m, 8m, 9m, 10m
Roller Width:
600mm, 700mm, 800mm
Conveying Height:
600mm~800mm
Conveying Speed:
10~18m/min
Max Loading Weight:
50kg/m2
Roller:
Galvanized Roller, OD 50mm
Structure:
Powder Coated or Galvanized Welded Hollow Section
Movable Wheel:
4'' Nylon Wheel
Extendable Length:
5m~12m
Surface Finishing:
Powder Coated for all Steel Parts Except the Standard Accessories
Successful Cases
Company Introduction
Our Strategy: Focus on customers’ actual demands and formulating flexible solutions to meet their current and future requirements, improve efficiency and save cost.
Our Mission: Customers First | Return to Society | Employees Satisfaction.
Our Factory:
Packing&Shipping
Our Partners
Certifications
FAQ
Q1: Manufacturing or trading company?
A1: A manufacturer, Automatic Sorting Systems as merging and transfroming, Material Handling Systems, Conveying sorting systems, Telescopic Belt Conveyors and Automatic systems.
Q2: Do you manufacture hardware and R&D software?
A2: Making most logistic equipments for hardware, and completely R&D software, we own experienced and skillful mechanical engineers, electrical engineers, sotware engineers.
Q3:Do you make OEM products, or customized projects?
A3: All of our projects are customized, we make non-standard products based on customers' idea.
Q4:Where is your company and the port?
A4: Our company is located in Shanghai, China where it's close to Shanghai Port.
Q5: What's your delivery time?
After confirming your deposit to us, the delivery time is 30 ~ 45 days.
Q6: What payment terms do you prefer?
A6: T/T , L/C , West Union.
Q7: How about warranty?
A7: roller conveyors, and belt conveyors, sorter machines are guaranteed for 1 years.
Q8: How to contact ?
A8: Add whatsapp and skype IDs, I will reply you instantly, or send me an inquiry online.
